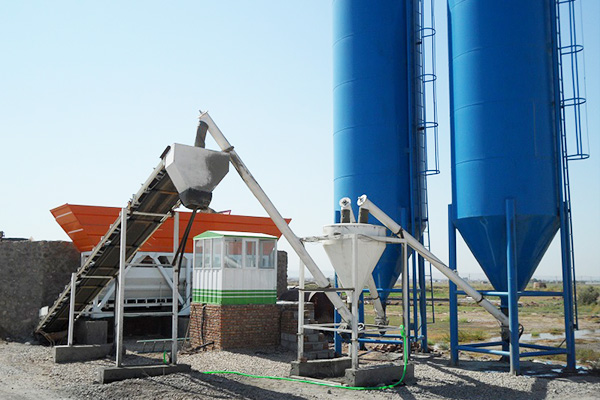

Dry Batch Concrete Plant

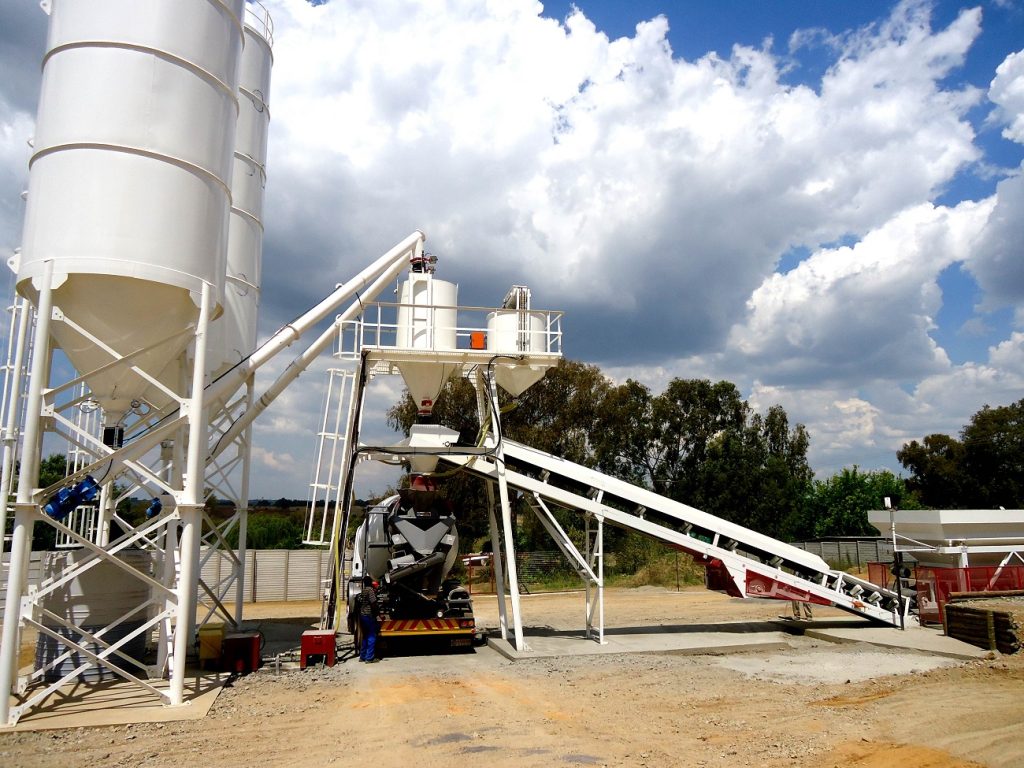

Sarl Tpmc Han’s Dry batch concrete plant use electronic or manual meters to weigh sand, gravel, and cement. After that, they will be discharged into the chute, which will be discharged into the tank of the mixer truck.
At the same time, the weight or volume of the water is also measured and discharged into the mixer truck through the same charging chute, and all materials are mixed at least 70 to 100 revolutions during transportation to the construction site.
Its advantages: because of the special working mode, it is very suitable for the task of supplying concrete to a remote transportation site. Since the mixing process is finished in the concrete mixer truck,helping save construction time.
Dry Batch Concrete Plant Technical Details
| Models | HanMix Dry Batch 60 m³ | HanMix Dry Batch 80 m³ | HanMix Dry Batch 100 m³ | HanMix Dry Batch 120 m³ |

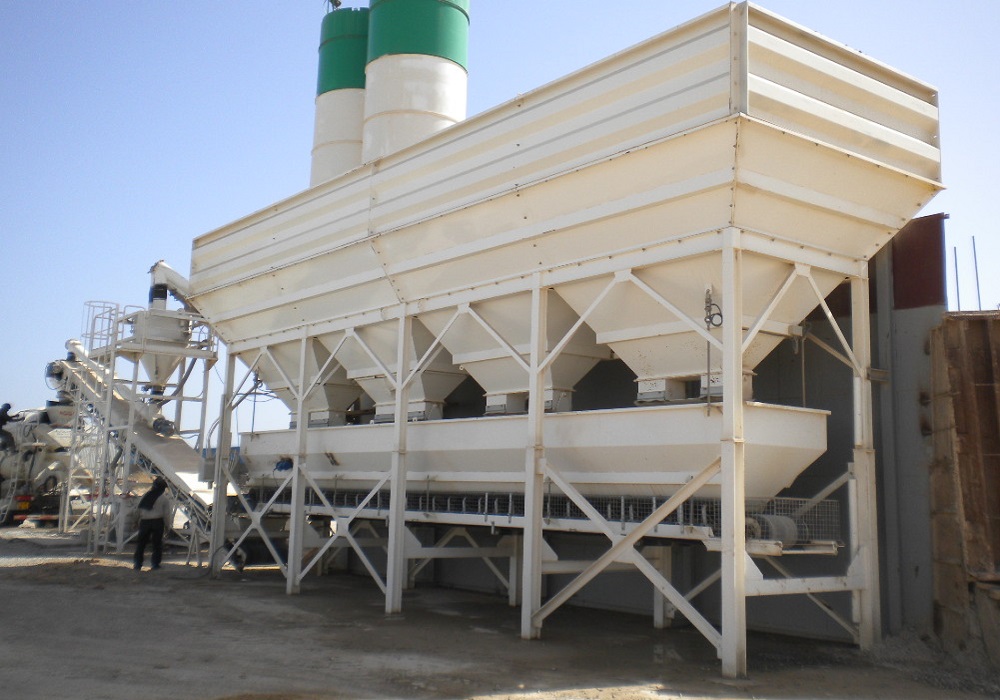

| Aggregate Bins | 4x20 m³ | 4x20 m³ | 4x25 m³ | 4x30 m³ |
| Aggregate Feeding | Ramp or Pre-Feeding System | Ramp or Pre-Feeding System | Ramp or Pre-Feeding System | Ramp or Pre-Feeding System |
| Capacity of Aggregate Holding Bunker | 2500kg | 3500kg | 5000kg | 6500kg |
| Cement Weighing Hopper | 600 kg | 750 kg | 900 kg | 1200 kg |
| Water Weighing Hopper | 300 kg | 400 kg | 500 kg | 600 kg |
| Additive Weighing Hopper | 30 kg | 40 kg | 40 kg | 50 kg |
| Cement Silo | 30,50,75,100,150,250 | 30,50,75,100,150,250 | 30,50,75,100,150,250 | 30,50,75,100,150,250 |
| Cement Screw Conveyor | Ø219 | Ø273mm | Ø273mm | Ø273mm |
| Control System | PLC-PC | PLC-PC | PLC-PC | PLC-PC |
| Air Compressor | Inclus | Inclus | Inclus | Inclus |
