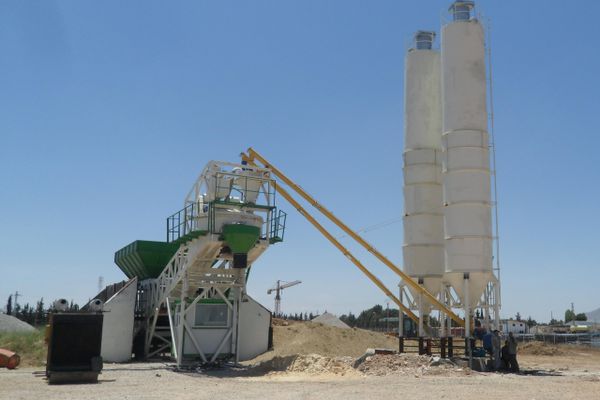

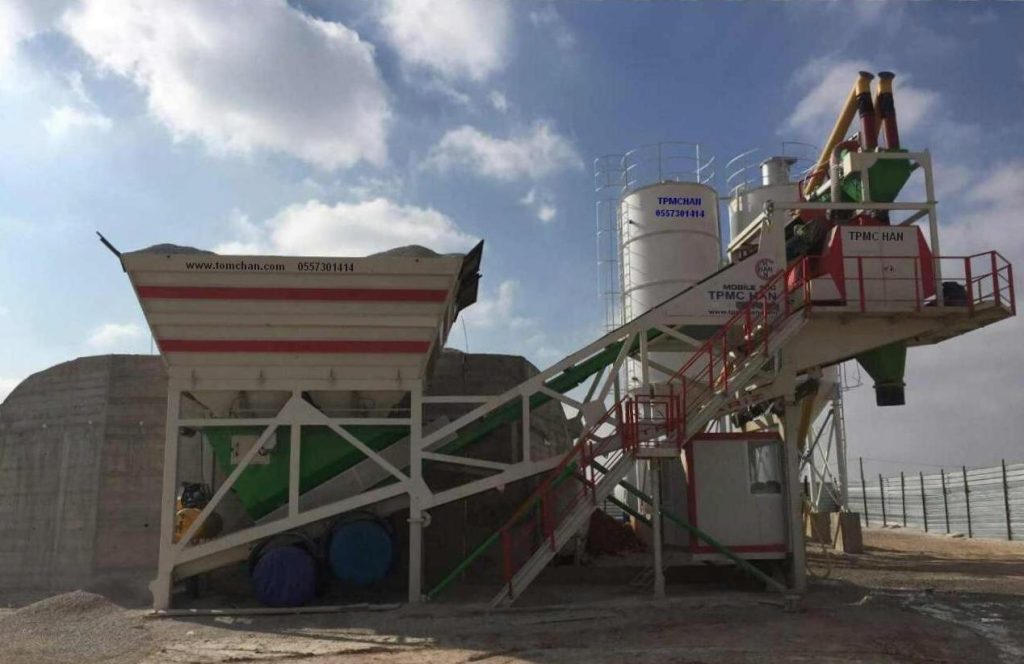

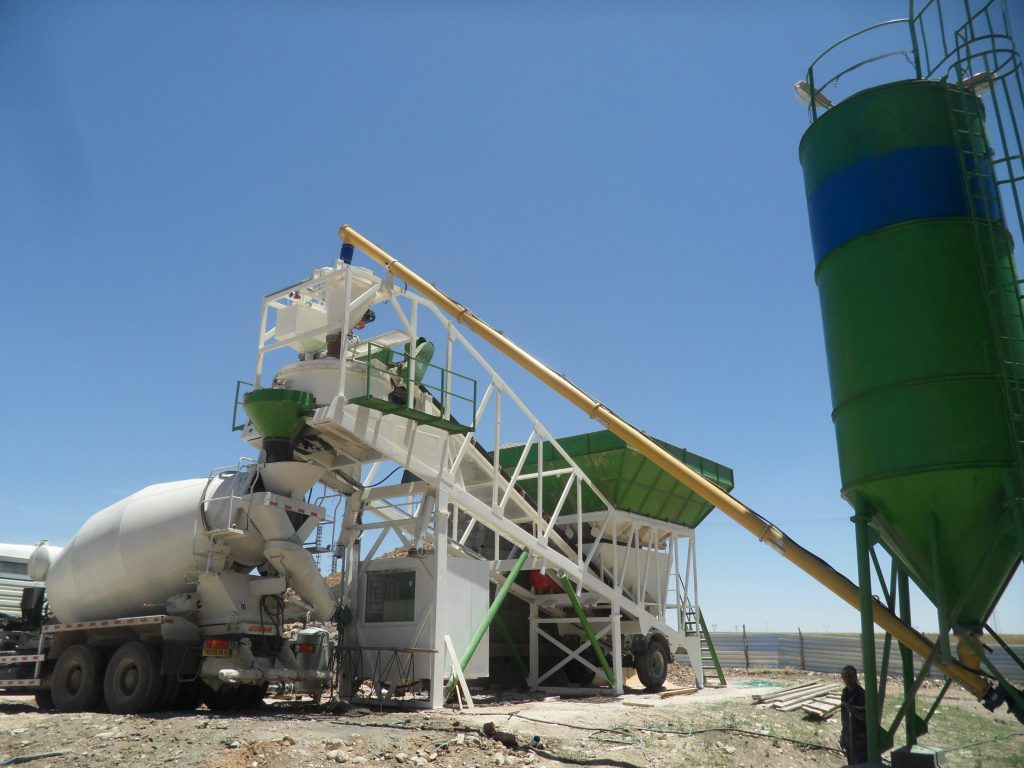

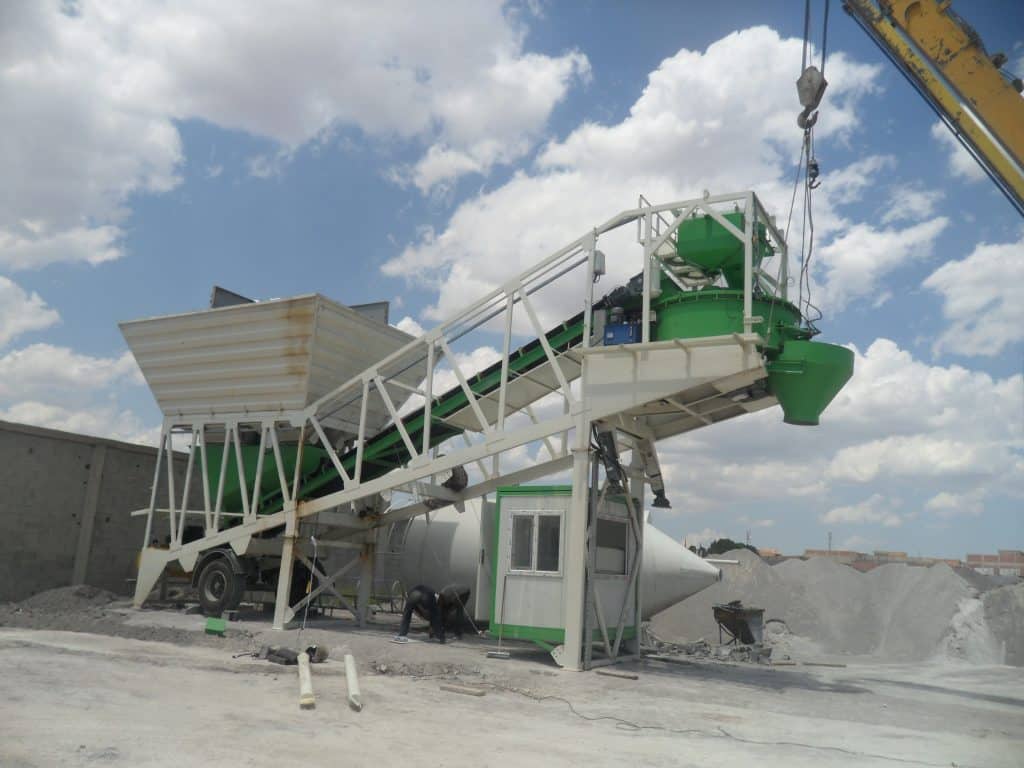

Mobile Concrete Plants



Mobile Concrete Plant have easy and fast portable installation feature. It can be moved with a single puller. It has low operating and maintenance costs. High quality materials have been used in the construction of mobile concrete batching plants. Our biggest feature is fast service and spare parts service. Mobile concrete batching plants are more preferred because they show very high strength in difficult conditions.
There is an optional mixer option in the construction of mobile concrete batching plants. Thanks to its design, it has the advantage of commissioning the installation in one day, which reduces installation costs. Mobile concrete batching plants rationalized Sarl Tpmc Han machinery in the concrete batching plant market with the highest level of materials and workmanship. Mobile concrete batching plants manufactured by our company are used in many construction sites without any problems. mobile concrete batching plants are widely preferred due to their low cost and ease of installation.
Sarl Tpmc Han mobile concrete batching plants, whose assembly is as short as two days, are frequently preferred in relocation projects. Sarl Tpmc Han mobile concrete batching plants produce mobile concrete batching plants with capacities between 30m³/h and 135m³/h. In this way, it offers a wide range of products to construction companies with medium and large-scale projects. Thanks to its wide product range, Han Mobil concrete batching plants are able to respond to their customers with “optionally special products”.



ADVANTAGES OF MOBILE CONCRETE PLANT
Minimum energy consumption,
Economic management costs;
High production efficiency,
easy maintenance,
High-quality, very long-lasting components.

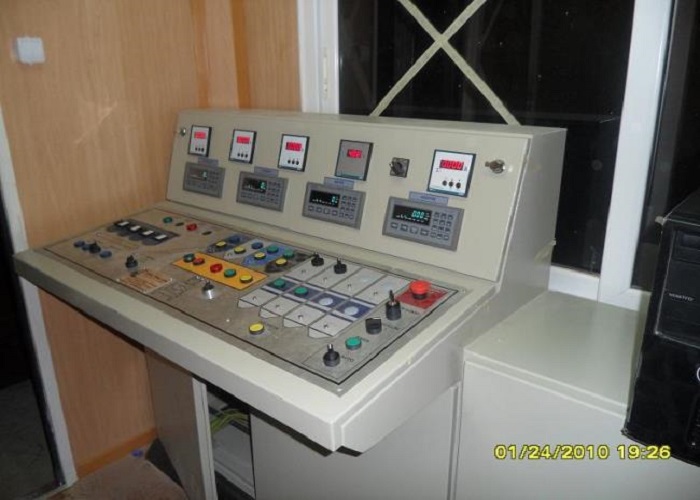

User-friendly, high-end Schneider Electric concrete batching plant

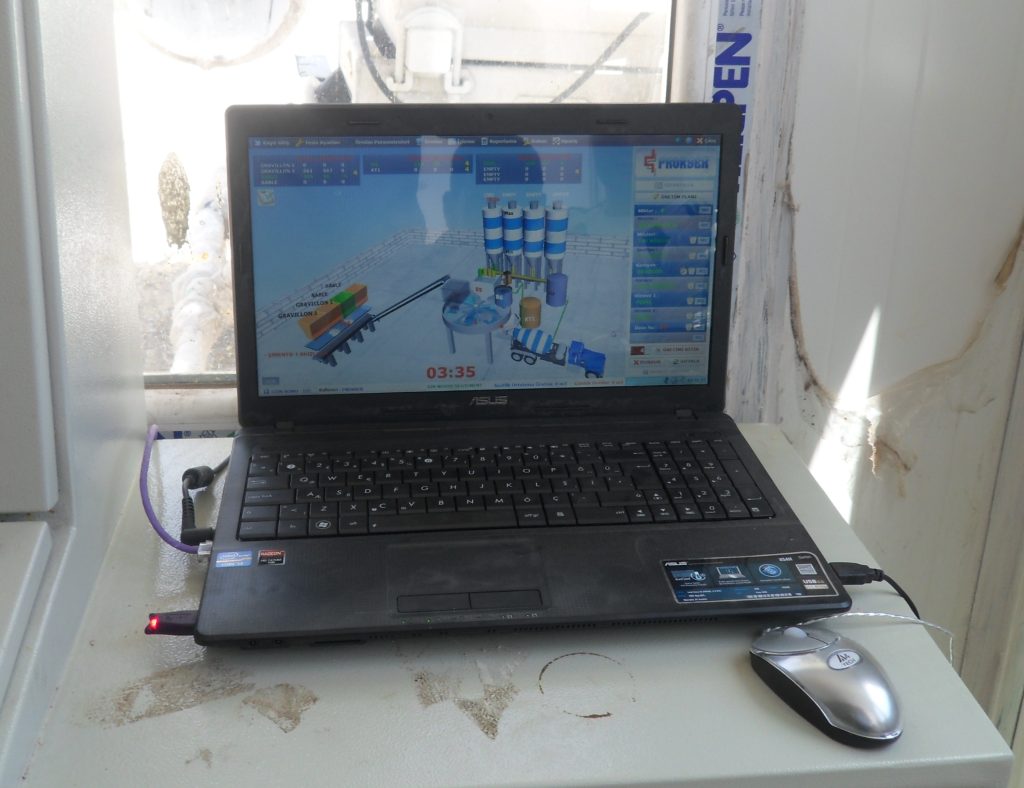

Control and command PLC software equipment,
Worldwide online service support
Transport with one truck
2 or 3 days,
1 day disassembly
Mobile Concrete Batching Plant Technical Details
Models | Hanmix Fixe 30m³ | Hanmix Fixe 60m³ | Hanmix Fixe 100m³ | Hanmix Fixe 135m³ |
Aggregate Bins | 4x10m³ | 4x30m³ | 4x30m³ | 4x30m³ |
Aggregate Feeding | Ramp or Pre-Feeding System | Ramp or Pre-Feeding System | Ramp or Pre-Feeding System | Ramp or Pre-Feeding System |
No of Aggregate Bins | 2,3,4,5 pcs | 2,3,4,5 pcs | 2,3,4,5 pcs | 2,3,4,5 pcs |
Capacity of Aggregate Holding Bunker | 1250kg | 2500kg | 5000/6250kg | 6500kg |
Mixer Capacity | 1000/750L | 1500L | 3000L | 4500L |
Mixer Type | Single Shaft/Turbo | Single Shaft/Planetary/Turbo | Twin Shaft | Twin Shaft |
Cement Weighing Hopper | 300kg | 600kg | 1350kg | 1600kg |
Water Weighing Hopper | 200kg | 300kg | 750kg | 900kg |
Additive Weighing Hopper | 2x15L | 2x25L | 2x25L | 2x30L |
Cement Silo | 50,75,100,150,250 Ton | 50,75,100,150,250 Ton | 50,75,100,150,250 Ton | 50,75,100,150,250 Ton |
Cement Screw Conveyor | Ø165 | Ø219 | Ø273 | Ø273 |
Control System | PLC-PC | PLC-PC | PLC-PC | PLC-PC |
Air Compressor | 4 kW | 5.5 kW | 7.5 kW | 11 kW |
